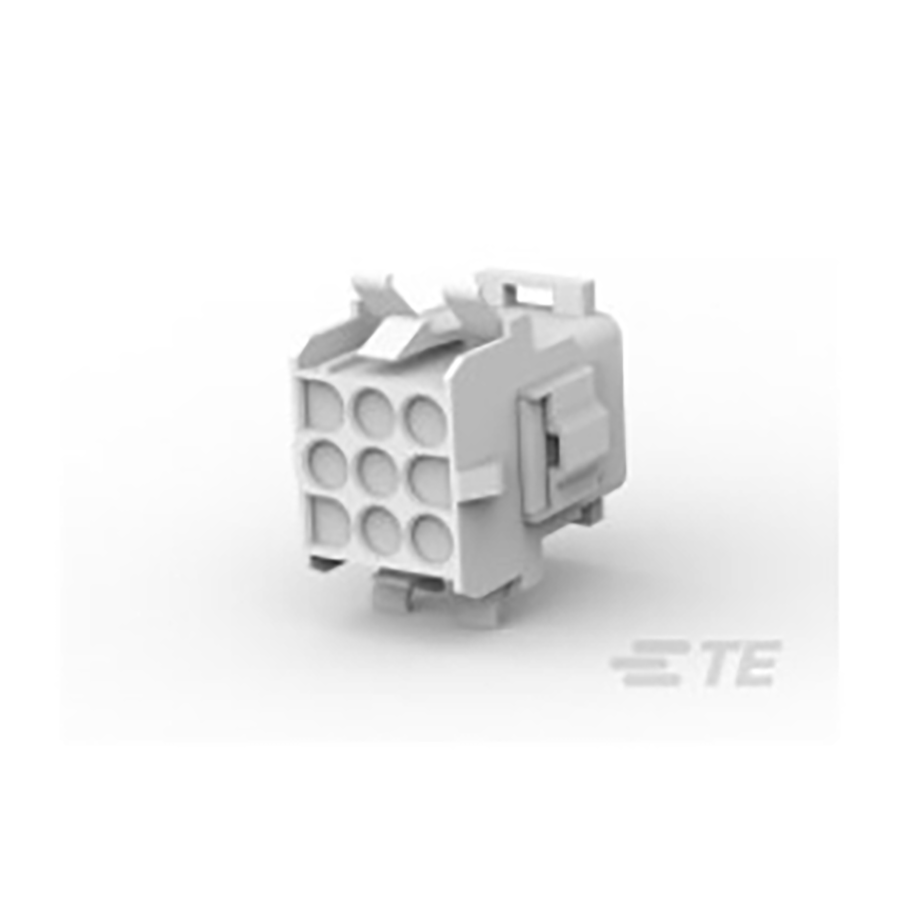

770028-1
Manufacturer:
TE Connectivity
Mfr.Part #:
770028-1
Datasheet:
Description:
IC and Component Sockets Panel Pin Number of Positions:9 Number of Rows:3 Pitch:6.35 mm Row Spacing:250 µm
| Parameter | Value |
|---|---|
| Length | 21.46 mm |
| Width | 20.32 mm |
| Termination | Crimp |
| Max Operating Temperature | 120 °C |
| Min Operating Temperature | -55 °C |
| Height | 27.4 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 22.99 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Pitch | 6.35 mm |
| Current Rating | 31 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Number of Circuits | 9 |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | White |
| Gender | Receptacle |
| Number of Contacts | 9 |
| ELV | Compliant |
| Connector Type | Pin |
| Wire/Cable Gauge | 30 AWG |
| Number of Positions | 9 |
| Number of Rows | 3 |
| Row Spacing | 250 µm |
| Housing Material | Nylon |
| Fastening Type | Ramp |
| Contact Style | Pin |
| Max Voltage Rating (AC) | 600 V |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 10 AWG |
| Housing Color | White |
| Panel Thickness | 2.29 mm |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 200
Distributors
pcbx
pcbxUnit Price$1.05312
Ext.Price$1.05312
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.05312 | $1.05312 |
| 10 | $0.95654 | $9.56540 |
| 25 | $0.92909 | $23.22725 |
| 50 | $0.90242 | $45.12100 |
| 100 | $0.87652 | $87.65200 |
| 300 | $0.85136 | $255.40800 |
| 500 | $0.82693 | $413.46500 |
| 1000 | $0.81344 | $813.44000 |
